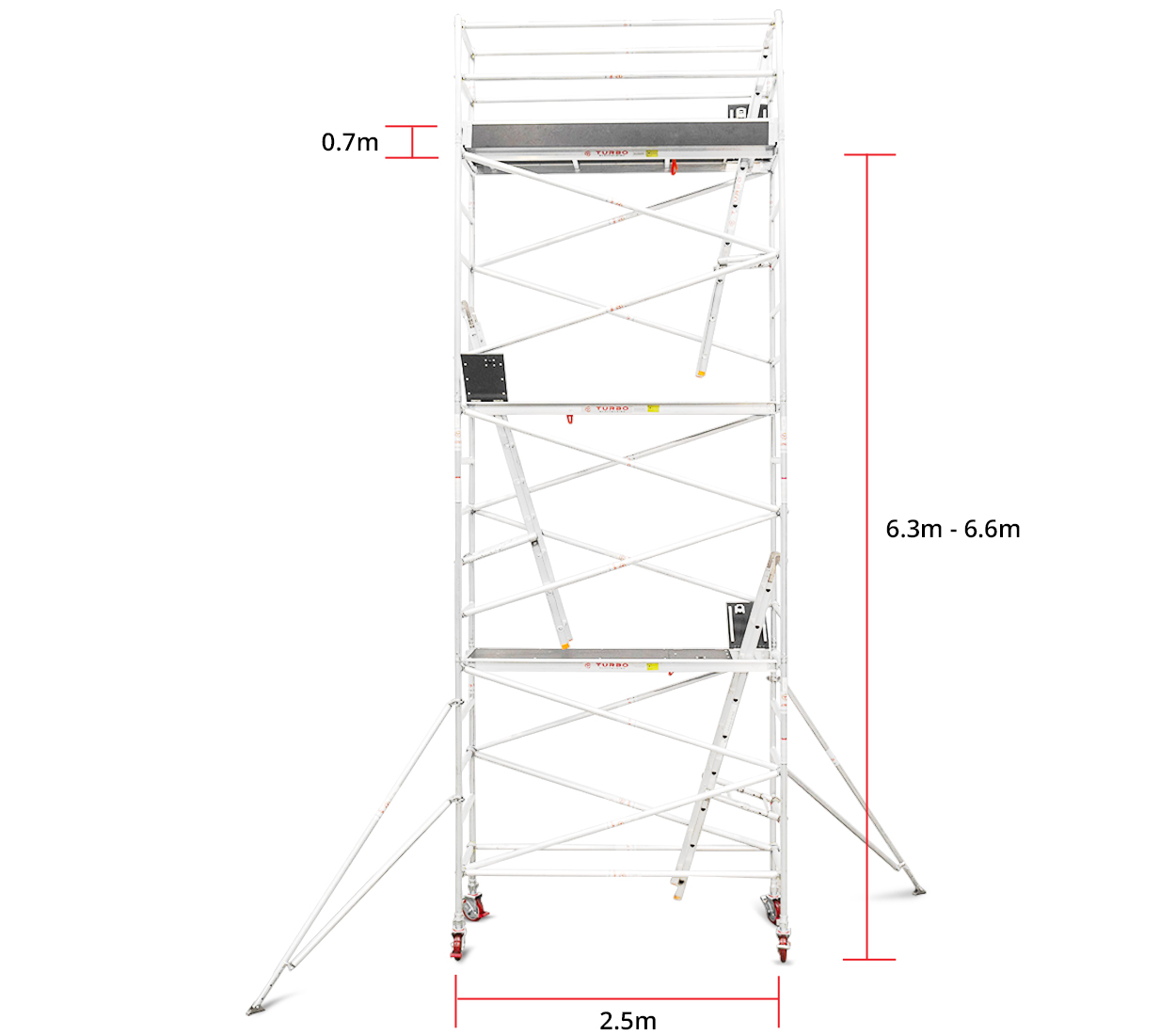

- Width: 0.7m
- Length:2.5m
- Height:6.3 - 6.6m
- Description
- Tower Inclusions
- Assembly Video
Our narrow tower will make access to tight spaces easy, you can erect in a stairwell, pathway or hallway. With a SWL of 225kg’s you can comfortably take your tools with you on your first trip to the top saving time and energy in the process.
Extending above 6.0m tall this Aluminium mobile scaffold will have you reaching heights safely and securely. Once it’s erected by a qualified Scaffolder this mobile tower allow you to Plaster, paint and fix the roof with ease.
Ideal for trades such as Painters, Plasterers or electricians our mobile scaffolding could be the best addition to your toolbox. Please remember that since this tower stands above 6 mtrs care must be taken whilst carrying and transporting. This aluminium mobile tower is 253.2kg’s, with its heaviest piece being 22.6kg’s.
All our towers are assembled piece by piece so you can still transport this scaffold by hand to any location, although Turbo recommends that 2 or more people be available to erect and strip this aluminium scaffold on site.
Delivery available in Sydney, Melbourne, Brisbane and Perth metro region only or you can arrange for a pick up from one of our Sydney, Melbourne, Brisbane or Perth location warehouse.
 |
Adjustable Castor Wheels
Our mobile scaffold castor wheels are made of polyurethane and 200mm thick. They have a safe working load of 225kgs and are fitted with a working locking system to prevent rolling or any movement when braking. All wheels feature 360 degree movement to provide easy transport. |
 |
Narrow Aluminium Frames (2.0m)
The larger of the frames for the narrow aluminium tower with an overall height of 2.0m.The top of the frames have a spigot which can be used to insert into other frames to extend.The locking pin can be applied for quick safety measures so there is no movement. |
 |
Narrow Guard Rail
This guard rail system is the top frame to provide safety atop the standing structure. The frame is durable and have 2mm wall thickness on the aluminium tube.This guard rail is suited for the narrow tower and has an overall height of 1m. |
 |
Horizontal Brace (Gold)
The horizontal brace is to provide stability to the structure from end to end.The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity. |
 |
Diagonal Brace (Blue)
The diagonal brace is to provide more stability to the structure than the horizontal brace.The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity. |
 |
Platform with Hatch Deck
The platform is manufactured with marine plywood and has an safe but simple ladder hatch, which provides safe access to passengers between levels. |
 |
Aluminium Scaffold Ladder 4m
Our Aluminium ladders feature an offset brace to secure ladders on certain angles while hooking into the scaffold frames.The ladders come in 4m sizes. |
 |
S5 Stabilisers, 2300mm to 3000mm
Stabilizer legs attach to the scaffold via couplers to help stabilize the structure and provide support. The stabilizers have the ability to alter the range required. The rubber soles on the swivel legs provide extra support and grip. |
 |
0.7m Toe Board
Timber Kickboards are made of plywood and securely fit into the scaffold to provide safety to falling objects. |
 |
2.5m Toe Board
Timber Kickboards are made of plywood and securely fit into the scaffold to provide safety to falling objects. |

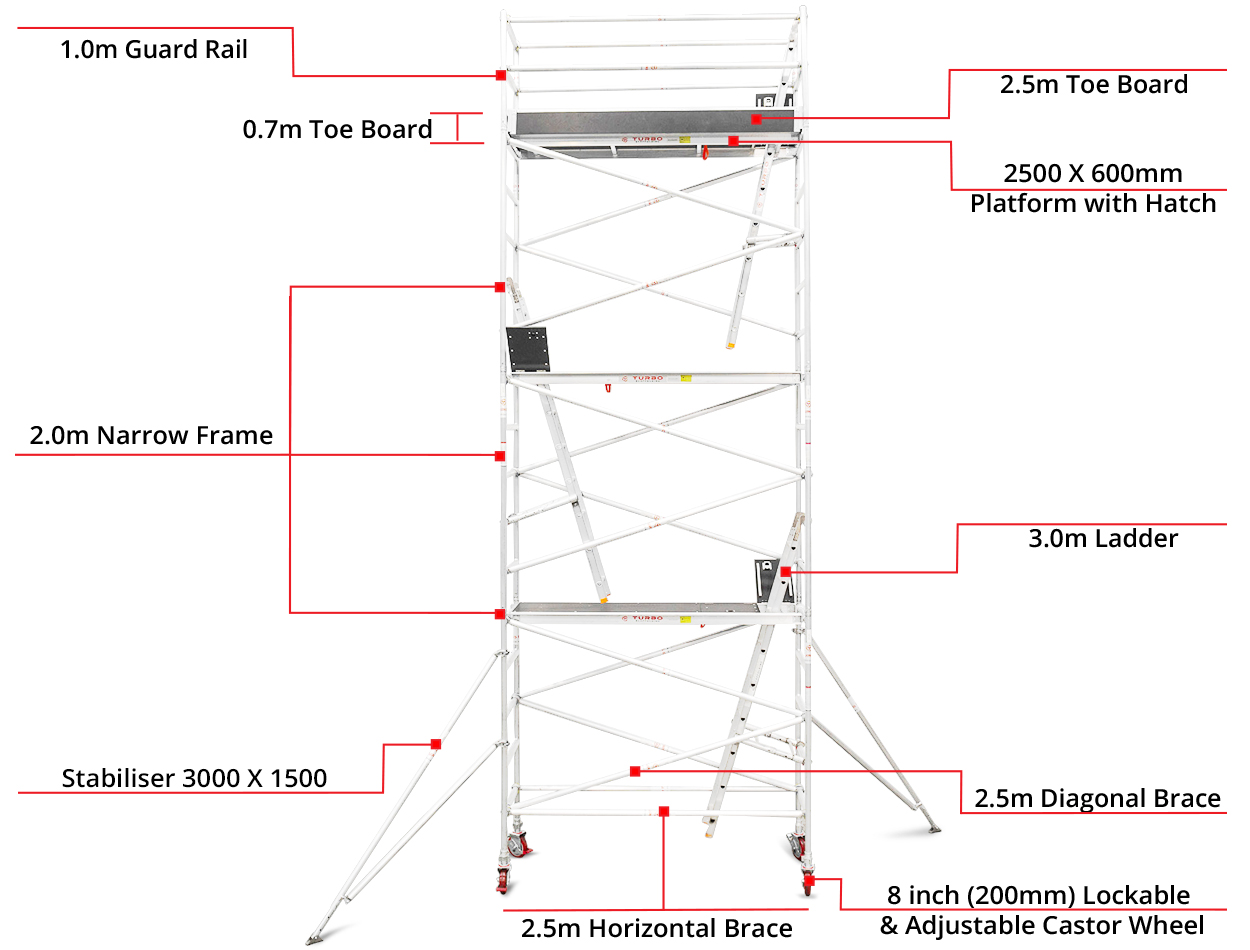

Toe Board
Platform
Diagonal Brace
Frame
Safety Pin
Ladder
Stabilisers
Castor Wheel
