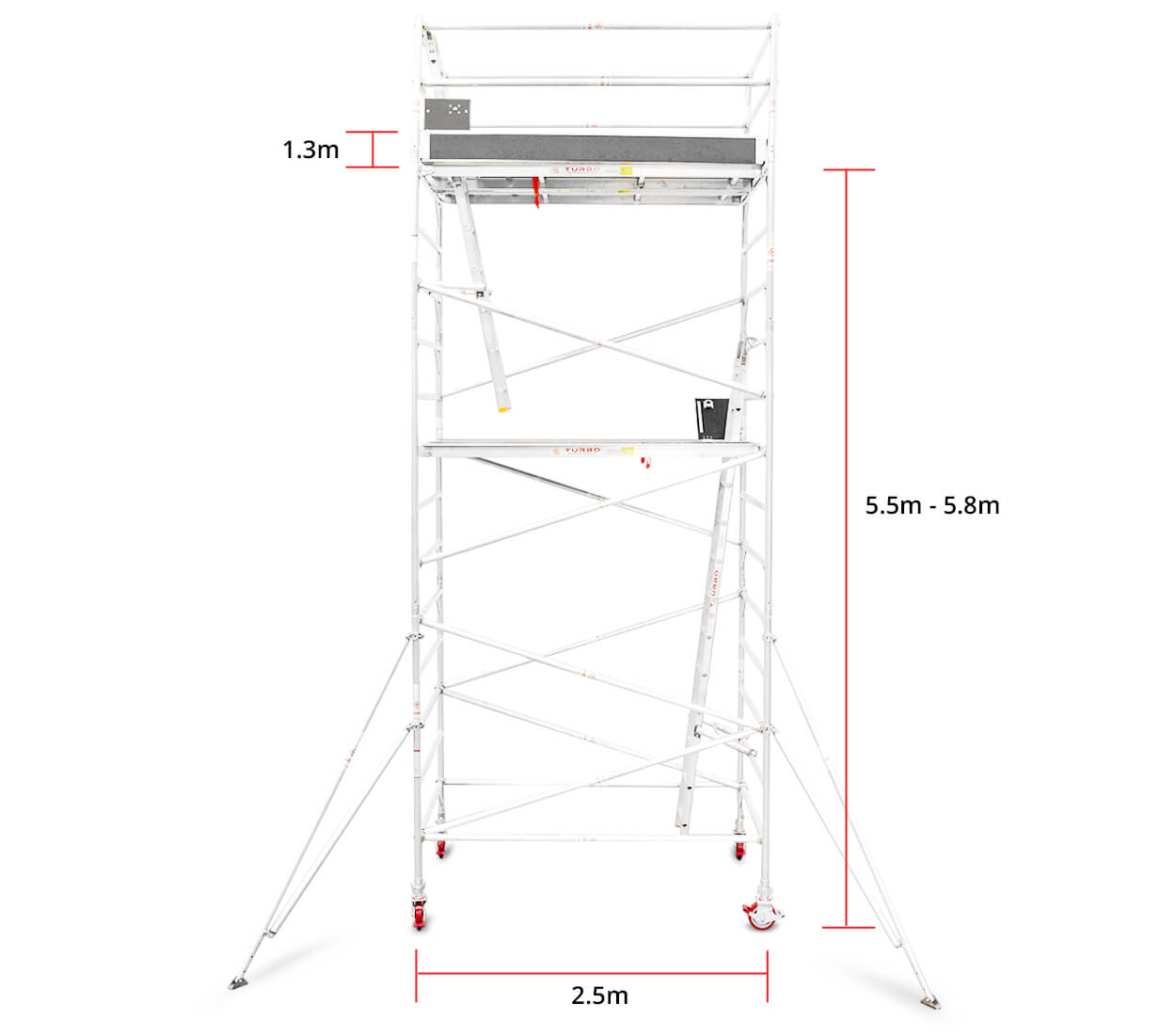

- Width: 1.3m
- Length:2.5m
- Height:5.5 - 5.8m
- Description
- Tower Inclusions
- Assembly Video
Standing almost 6mtrs tall with a deck width of 1.3mtrs, our 5.3m to 5.7m mobile aluminium scaffold is the perfect solution to small jobs at height. This scaffold could be used by trades such as Painters, Plasterers or Electricians.
Because you have a wide working deck, you can also have the apprentice there as well, making it faster and safer to complete the job. It will provide the height and stability you need to fix the roof, paint the ceiling or mend the gutters.
As it is over 4mtrs tall a qualified Scaffolder will need to assemble this scaffold tower. It is also recommended that 2 or more people be available to ensure the safety and proper handling of each piece.
As our scaffolds are assembled piece by piece transport and storage is still easy meaning it can be transported in a small ute.
The total weight is 279.60kgs with a maximum weight per piece of 22.6kgs
Delivery available in Sydney, Melbourne, Brisbane and Perth metro region only or you can arrange for a pick up from one of our Sydney, Melbourne, Brisbane or Perth location warehouse.
 |
Adjustable Castor Wheels
Our mobile scaffold castor wheels are made of polyurethane and 200mm thick. They have a safe working load of 225kgs and are fitted with a working locking system to prevent rolling or any movement when braking. All wheels feature 360 degree movement to provide easy transport. |
 |
Wide Aluminium Frames (2.0m)
The larger of the frames for the wide aluminium tower with an overall height of 2.0m.The top of the frames have a spigot which can be used to insert into other frames to extend.The locking pin can be applied for quick safety measures so there is no movement. |
 |
Wide Aluminium Frames (1.2m)
The smaller of the frames for the wide aluminium tower with an overall height of 1.2m.The top of the frames have a spigot which can be used to insert into other frames to extend. The locking pin can be applied for quick safety measures so there is no movement. |
 |
Wide Guard Rail
This guard rail system is the top frame to provide safety atop the standing structure. The frame is durable and have 2mm wall thickness on the aluminium tube. This guard rail is suited for the wide tower and has an overall height of 1m. |
 |
Horizontal Brace (Gold)
The horizontal brace is to provide stability to the structure from end to end.The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity. |
 |
Diagonal Brace (Blue)
The diagonal brace is to provide more stability to the structure than the horizontal brace.The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity. |
 |
Platform with Hatch Deck
The platform is manufactured with marine plywood and has an safe but simple ladder hatch, which provides safe access to passengers between levels. |
 |
Aluminium Scaffold Ladder 4m
Our Aluminium ladders feature an offset brace to secure ladders on certain angles while hooking into the scaffold frames.The ladders come in 4m sizes. |
 |
S3 Stabilisers, 2300mm to 3000mm
Stabilizer legs attach to the scaffold via couplers to help stabilize the structure and provide support. The stabilizers have the ability to alter the range required. The rubber soles on the swivel legs provide extra support and grip. |
 |
1.3m Toe Board
Timber Kickboards are made of plywood and securely fit into the scaffold to provide safety to falling objects. |
 |
2.5m Toe Board
Timber Kickboards are made of plywood and securely fit into the scaffold to provide safety to falling objects. |

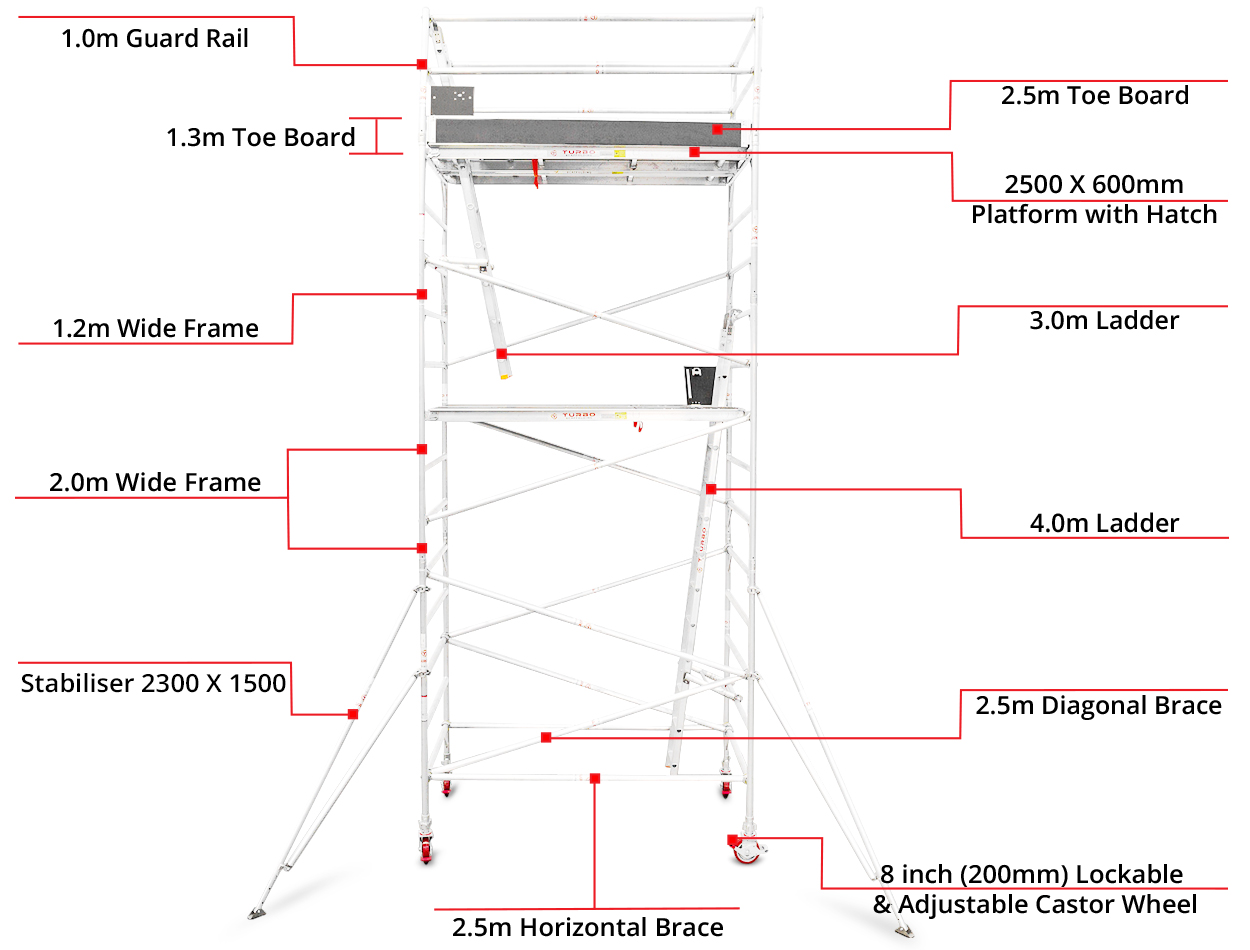

Toe Board
Platform
Diagonal Brace
Frame
Safety Pin
Ladder
Stabilisers
Castor Wheel
