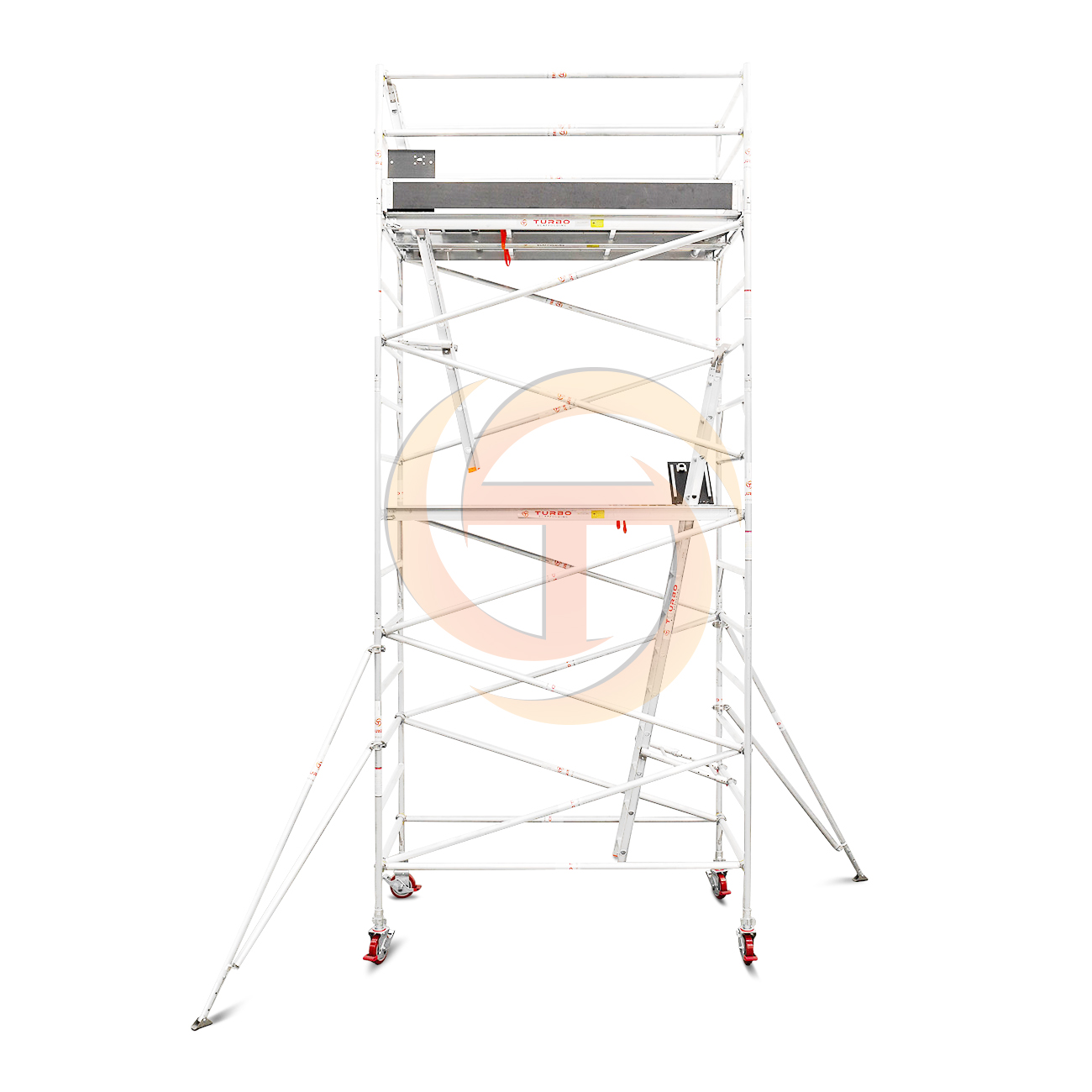

Name: Turbo Scaffolding
Price range: $$$

%OFF

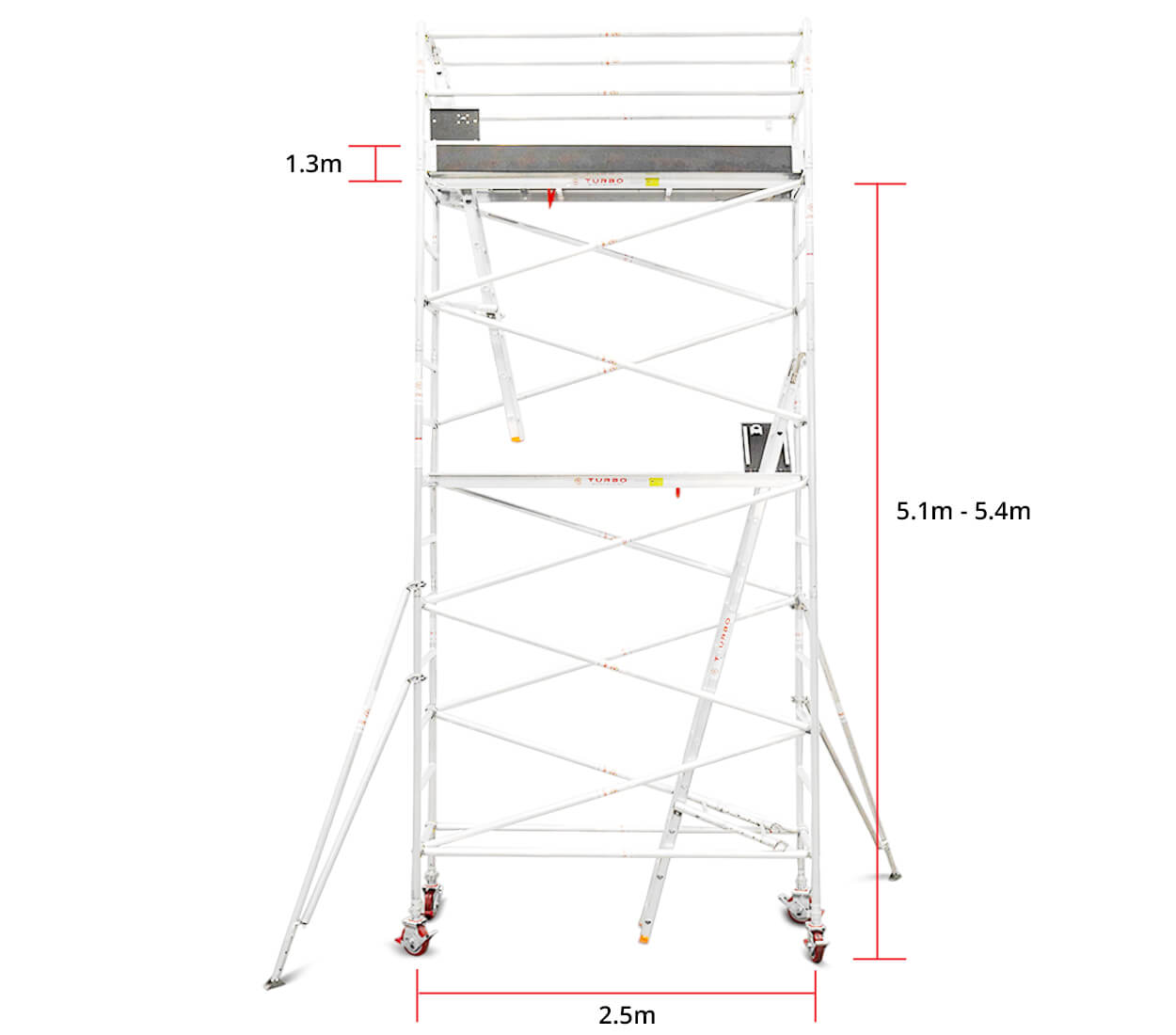

Width: 1.3m
Length:2.5m
Height:5.1 - 5.4m

Code: 5.1M/5.4MWAMT

Don't pay $5,121.32

^$5,041.32

(Inclusive GST)

Save$80.00

See package inclusions

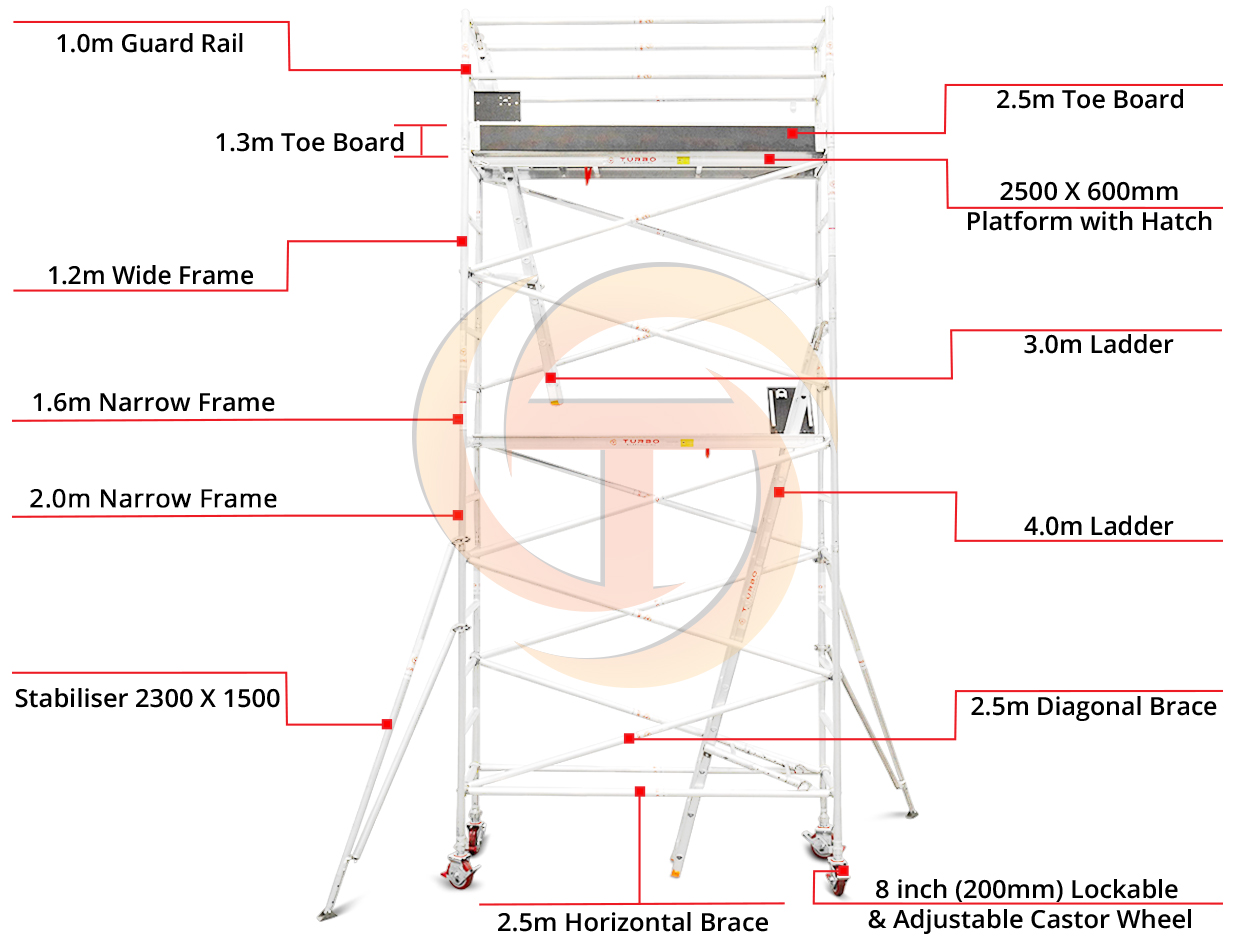

CODE	DESCRIPTION	QTY
CWA8	TURBO 8- inch (200mm) Lockable & Adjustable Castor Wheel	4
WF5	2.0m Wide Frame	2
WF4	1.6m Wide Frame	2
WF3	1.2m Wide Frame	2
WG1	1.0m Guard Rail	2
WHB	2.5m Horizontal Brace (Gold)	8
WDB	2.5m Diagonal Brace (Blue)	10
KA-2.5x0.6PH	2500*600mm Platform with Hatch	4
AL60-04	4.0m Ladder	1
AL60-03	3.0m Ladder	1
S3	Stabiliser 2300 x 1500	2
TB13	1.3m Toe Board	2
TB25	2.5m Toe Board	2

Payment options:

Buy Online

Click on "Add to cart" to Buy Online

Pickup Options

Pick up Delivery

Pickup Location:

Qty:

Send Enquiry

Click on below button for "Send Enquiry"

SEND ENQUIRY

Note: AS 1576 mandates that all mobile towers must be fitted with stabilizers when the platform height reaches 1.9 meters or above.

Description
Tower Inclusions
Assembly Video

Description

Turbo Scaffolding in Australia has a full range of aluminium towers ideal for trades such as Painters, Plasterers or electricians. They will give you the height and stability you need to complete any job and being 1.3mtrs wide there will be enough space for multiple workers at once

At up to 5.0m tall you can reach that second story for painting, roof repairs or guttering. Also take all your tools with you with plenty of deck space for storage.

It will need to be assembled by a qualified Scaffolder and Turbo Scaffolding recommends that 2 or more people be available to erect and strip this tower. our mobile scaffolding could be the best addition to your toolbox.

Our 5m tower is 273.00kg’s, with its heaviest piece being 22.60kg’s care must be taken whilst carrying and transporting.

With a SWL of 450kg’s you’ll feel safe and secure working from a Turbo mobile scaffolding tower.

Delivery available in Sydney, Melbourne, Brisbane and Perth metro region only or you can arrange for a pick up from one of our Sydney, Melbourne, Brisbane or Perth location warehouse.

Tower Inclusions

	Adjustable Castor Wheels Our mobile scaffold castor wheels are made of polyurethane and 200mm thick. They have a safe working load of 225kgs and are fitted with a working locking system to prevent rolling or any movement when braking. All wheels feature 360 degree movement to provide easy transport.
	Wide Aluminium Frames (2.0m) The larger of the frames for the wide aluminium tower with an overall height of 2.0m.The top of the frames have a spigot which can be used to insert into other frames to extend.The locking pin can be applied for quick safety measures so there is no movement.
	Wide Aluminium Frames (1.6m) The mid-size of the frames for the wide aluminium tower with an overall height of 1.6m.The top of the frames have a spigot which can be used to insert into other frames to extend.The locking pin can be applied for quick safety measures so there is no movement.
	Wide Aluminium Frames (1.2m) The smaller of the frames for the wide aluminium tower with an overall height of 1.2m.The top of the frames have a spigot which can be used to insert into other frames to extend. The locking pin can be applied for quick safety measures so there is no movement.
	Wide Guard Rail This guard rail system is the top frame to provide safety atop the standing structure. The frame is durable and have 2mm wall thickness on the aluminium tube. This guard rail is suited for the wide tower and has an overall height of 1m.
	Horizontal Brace (Gold) The horizontal brace is to provide stability to the structure from end to end.The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity.
	Diagonal Brace (Blue) The diagonal brace is to provide more stability to the structure than the horizontal brace.The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity.
	Platform with Hatch Deck The platform is manufactured with marine plywood and has an safe but simple ladder hatch, which provides safe access to passengers between levels.
	Aluminium Scaffold Ladder 4m Our Aluminium ladders feature an offset brace to secure ladders on certain angles while hooking into the scaffold frames.The ladders come in 4m sizes.
	S3 Stabilisers, 2300mm to 3000mm Stabilizer legs attach to the scaffold via couplers to help stabilize the structure and provide support. The stabilizers have the ability to alter the range required. The rubber soles on the swivel legs provide extra support and grip.
	1.3m Toe Board Timber Kickboards are made of plywood and securely fit into the scaffold to provide safety to falling objects.
	2.5m Toe Board Timber Kickboards are made of plywood and securely fit into the scaffold to provide safety to falling objects.
