- Width: 0.7m
- Length:2.5m
- Height:2.3 - 2.6m
- Description
- Tower Inclusions
** Please note no Kick Boards, Ladders & Stabilizers SOLD separately
Our narrow width aluminium mobile scaffolding tower is great for the home handyman or small business owner that needs a bit of height on a compact platform. As this mobile scaffold is under 4mtr standing height it can be erected by any competent person. It would be perfectly suited to Painters, Plasterers and electricians.
With each piece of aluminium scaffold being individually erected it makes for easy storage and logistics from site to site in a van or ute. The total weight of the scaffold is 92.20kg’s with its heaviest piece being only 22.6kg’s. It’s width is a small and compact 0.7M.
It provides a SWL of 225kg’s. Turbo Scaffolding suggests that even though the tower is lightweight, it would be easier to erect with 2 people.
Delivery available in Sydney, Melbourne, Brisbane and Perth metro region only or you can arrange for a pick up from one of our Sydney, Melbourne, Brisbane or Perth location warehouse.
|
Adjustable Castor Wheels
Our mobile scaffold castor wheels are made of polyurethane and 200mm thick. They have a safe working load of 225kgs and are fitted with a working locking system to prevent rolling or any movement when braking. All wheels feature 360 degree movement to provide easy transport. |
|

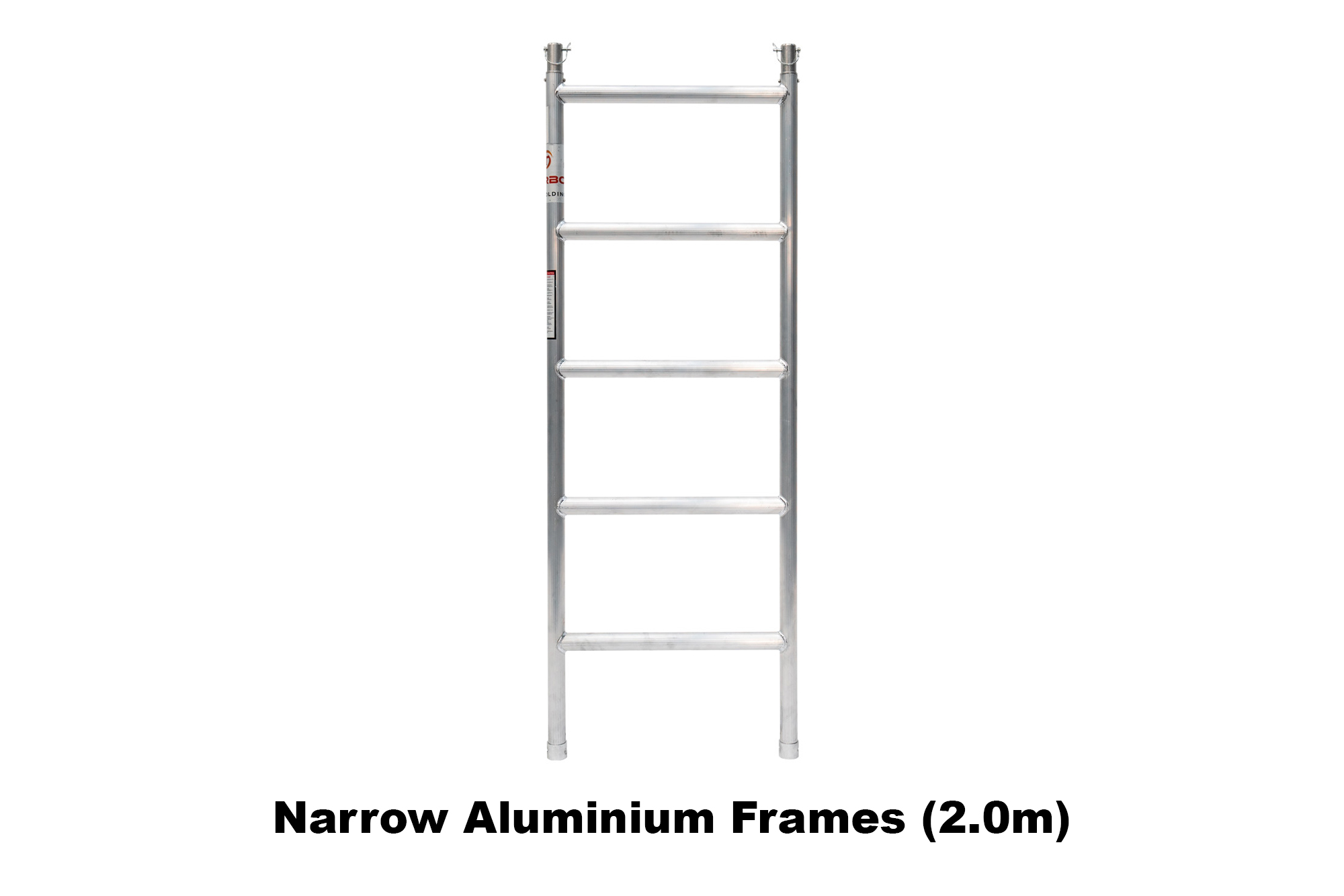

Narrow Aluminium Frames (2.0m)
The larger of the frames for the narrow aluminium tower with an overall height of 2.0m. The top of the frames have a spigot which can be used to insert into other frames to extend. The locking pin can be applied for quick safety measures so there is no movement. |
|
Narrow Guard Rail
This guard rail system is the top frame to provide safety atop the standing structure. The frame is durable and have 2mm wall thickness on the aluminium tube. This guard rail is suited for the narrow tower and has an overall height of 1m. |
|
Horizontal Brace (Gold)
The horizontal brace is to provide stability to the structure from end to end. The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity. |
|
Diagonal Brace (Blue)
The diagonal brace is to provide more stability to the structure than the horizontal brace. The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity. |
|
Platform with Hatch Deck
The platform is manufactured with marine plywood and has an safe but simple ladder hatch, which provides safe access to passengers between levels. |
