Adjustable Screw Jacks

Back to category
Adjustable Screw Jacks
Product Image Product Details Size Weight Painted Galvanised Qty

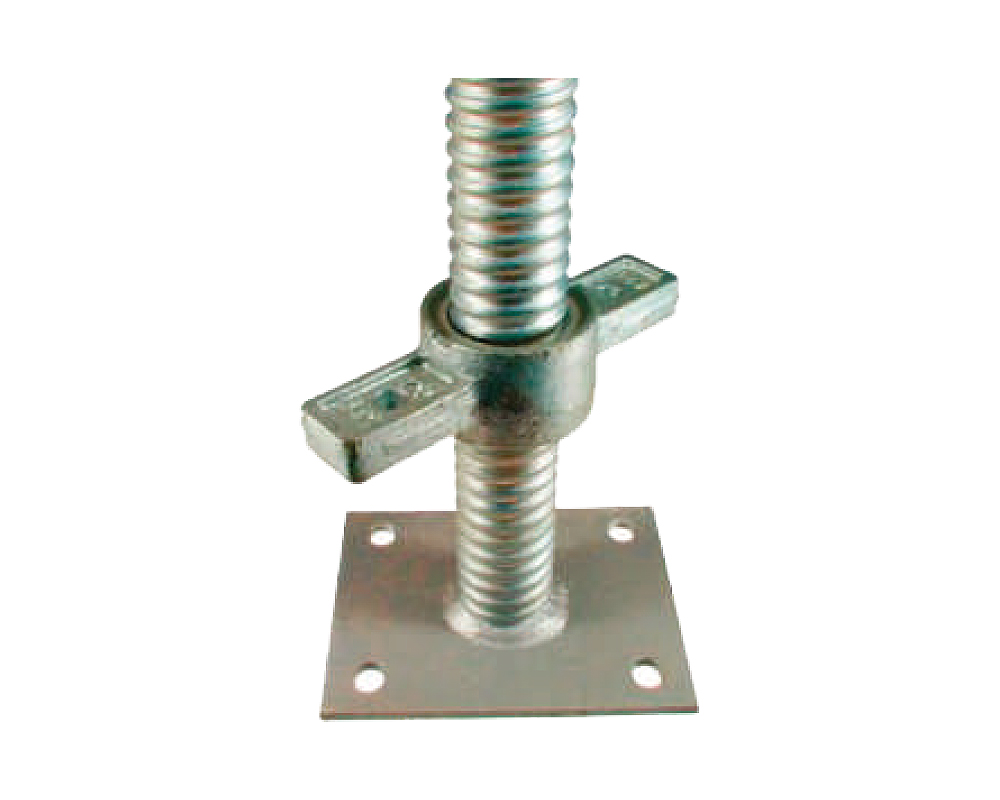

Adjustable Solid Base Jack - Electro Galvanised

Used for levelling your scaffold structure, the adjustable solid base jack has a 34mm diameter x 650mm long threaded bar with Cast nut it has an adjustment capability of 500mm. Designed to fit inside a Standard / Vertical pole to support the load from a standard is 150mm square x 8.0mm thick base plate.<br /> <br /> Other Special sizes can be made to order. Minimum order quantities are required for custom made Base Jacks.

 34mm Dia x 650mm Long 6.0 kg

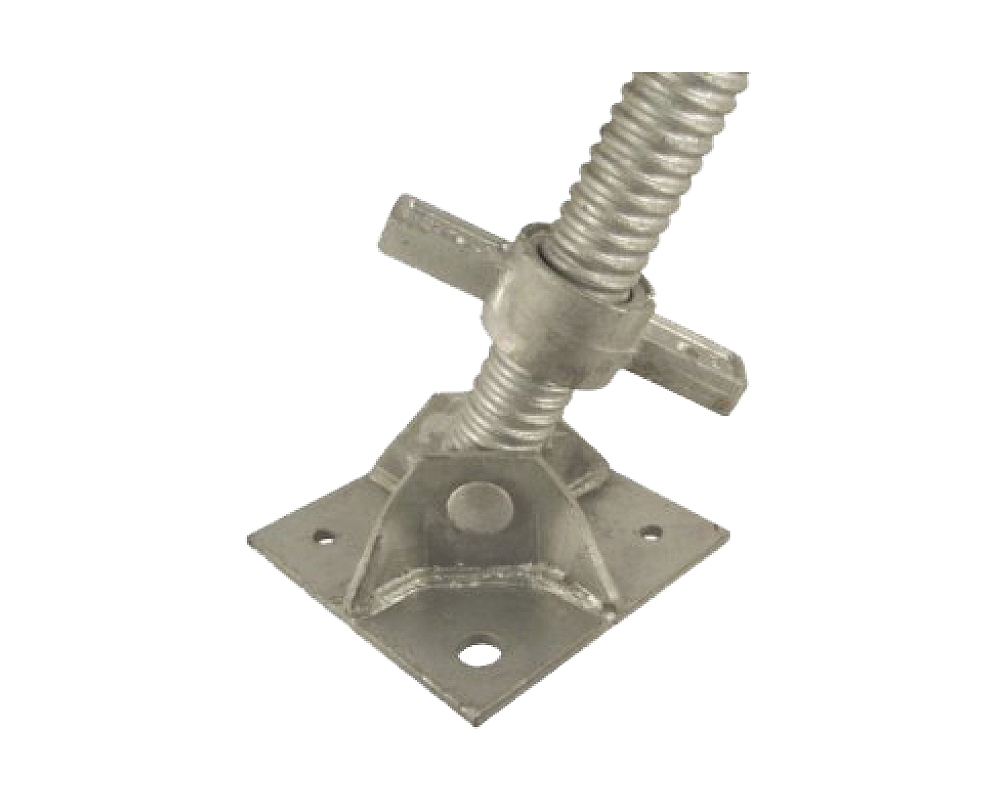

Adjustable Solid Swivel Jack - Electro Galvanised

Used for levelling your scaffold structure, the adjustable solid base jack has a 34mm diameter x 650mm long threaded bar with Cast nut it has an adjustment capability of 500mm. Designed to fit inside a Standard / Vertical pole to support the load from a standard is 150mm square x 8.0mm thick base plate.<br /> <br /> A Swivel Jack will have a pivot point at the base of the upright to allow for levelling on uneven ground.<br /> <br />

34mm Dia x 650mm long 6.9 kg

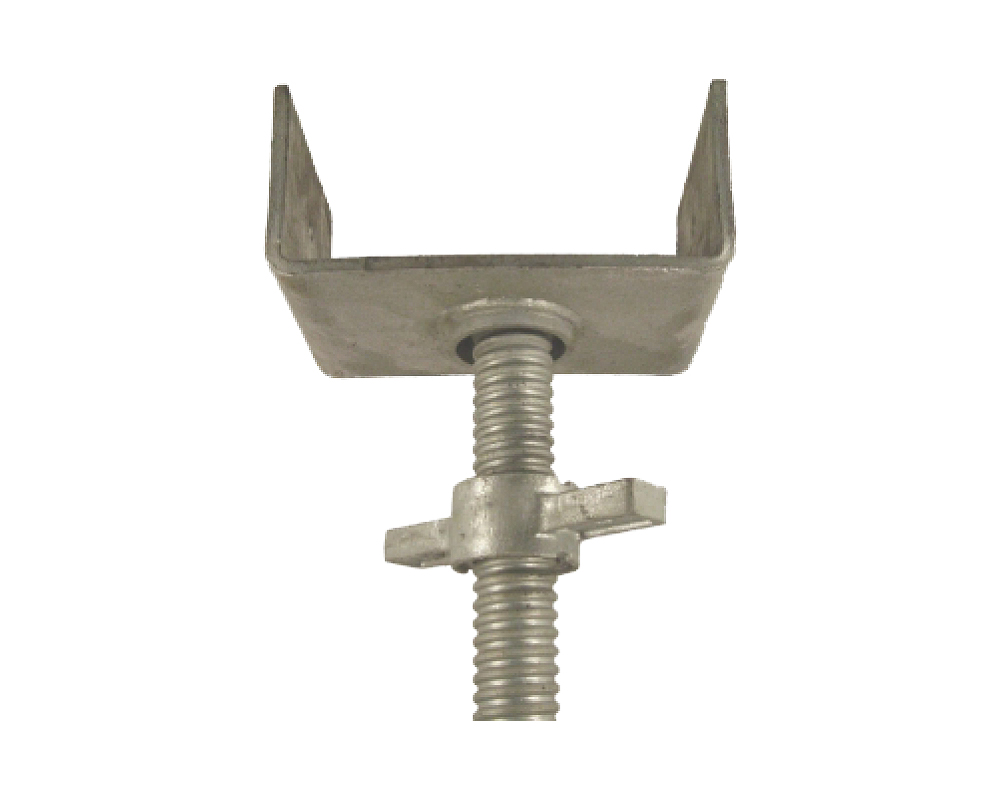

Adjustable Solid U Head Jack - Electro Galvanised

An adjustable solid U head jack comes with a solid stem of 34mm diameter and 650mm long. It has an adjustment of 500mm. It is utilised to support and locate a Standard or Vertical Pole over a bearer. <br /> <br /> U head Jacks can be made to order but minimum quantities will apply.<br /> <br />

34mm Dia x 650mm Long 8.9 kg

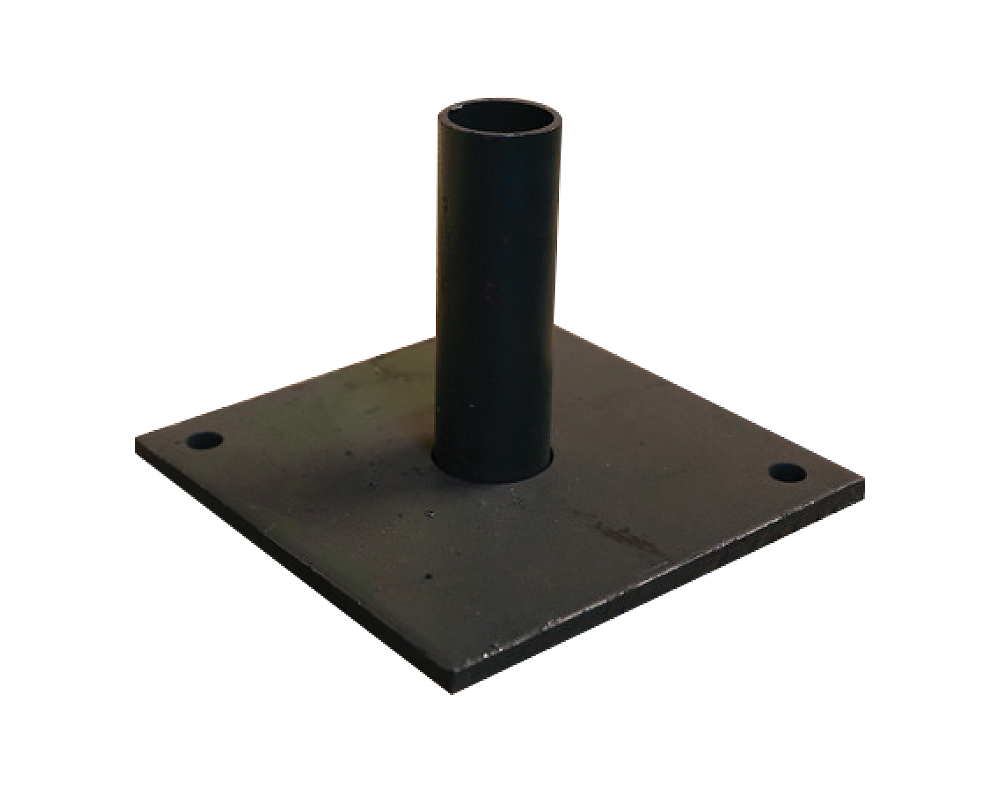

Plain Base Plates

A Base Plate is required to support the scaffold structure. Our base plate is 8.0mm thick x 150mm square, welded with a spigot of 100mm long. This will help distribute the load of your scaffold.

 8.0mm thick x 150mm Square 1.8 kg

Adjustable Screw Jacks For Sale


Adjustable screw jacks are a must for any working Scaffold that is situated on uneven ground, or needs to be raised off the ground to reach the correct working height. Commonly used to level your scaffold or change the angle of your platform, adjustable screw jacks are required to support any heavy load and ensure safety and levelling of your scaffold tower.


We stock and supply a full range including adjsutable solid base jack, adjustible solid swivel jack, adjustable solid U head jacks as well as Electro galvinised base jack, Electro galvinised swivel jack and Electro galvinised U head jack.


If you're looking to buy solid base jacks, or solid U head jacks call the team today.
